Ultralight X-Ray Curtains

Ultralight Xray Curtains provide radiation shielding equivalent to lead. The lead is replaced with non-toxic metals which block radiation. By using a combination of heavy metals, we created a very light weight x-ray curtains with 25% lower weight than traditional x-ray curtains.  These curtains are available in 0.125mm Pb(free) and 0.25mm Pb(free) protection levels.

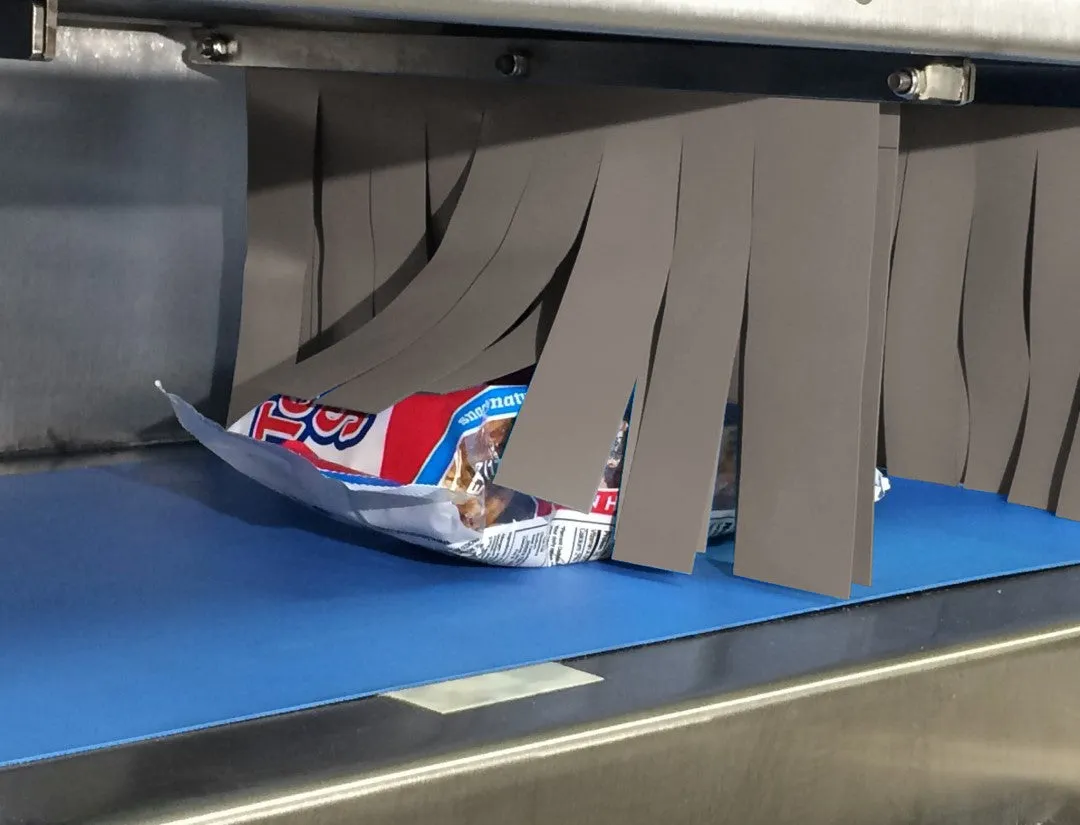

A UHMW film is applied to one side to increase x-ray curtain durability in high wear applications.  This lead-free curtain is perfect for x-ray systems inspecting lightweight pouches, cartons, or cups where other lead free curtains may cause the product to catch or stack up on the conveyor belt. Our Ultralight Xray Curtains are unique and you will not find another curtain like this on the market!

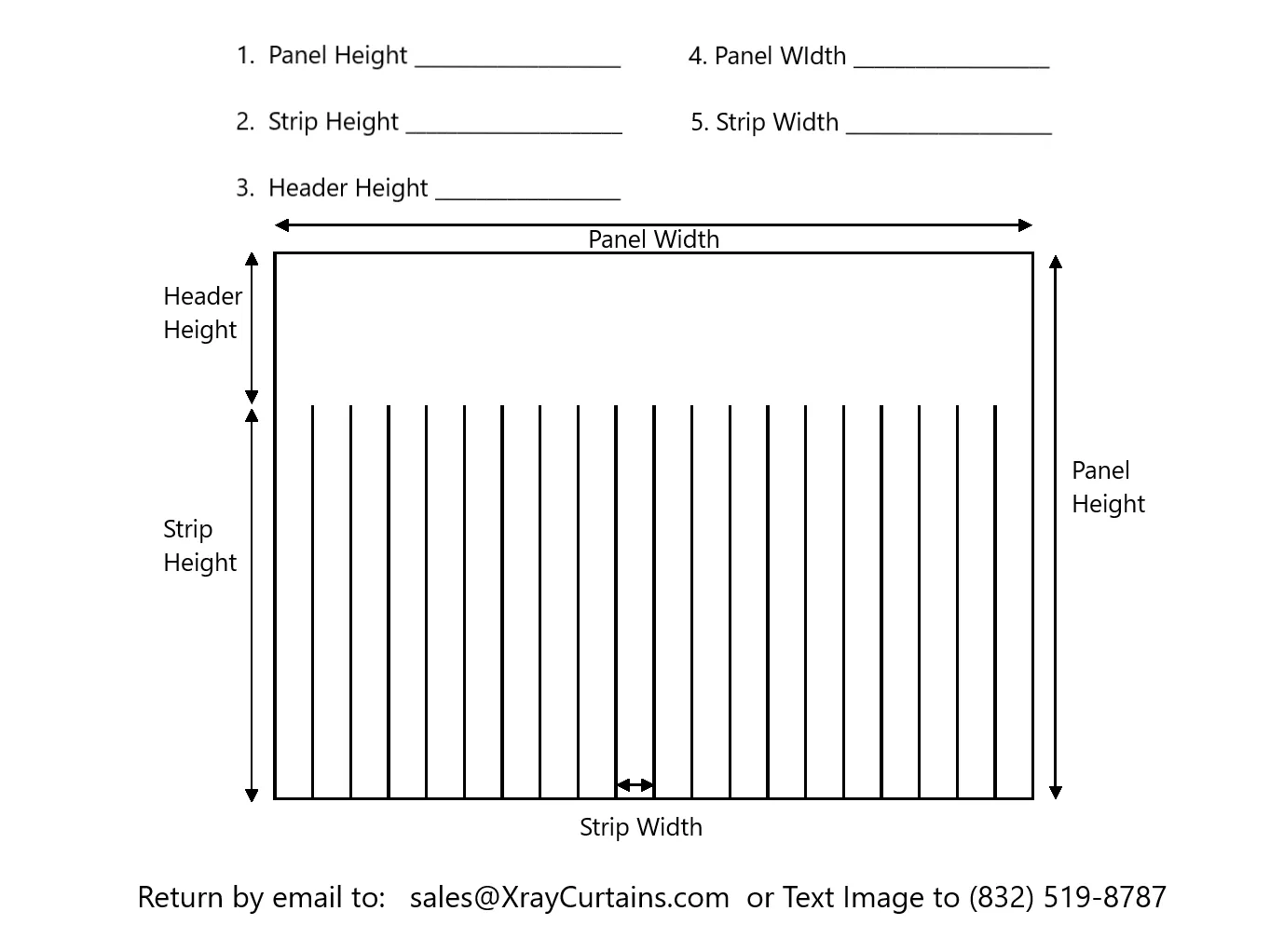

Custom Cut Curtains can be provided to match the requirements of any xray system by either filling out an or emailing our curtain template to .

Material is environmentally friendly. No toxic ingredients. No disposal restrictions.

Ultralight X-Ray Curtain Features

• 0.125mm and 0.25mm lead equivalent protection level.
• Duplex custom cut curtain sets available.
• Precut curtain sets have a standard curtain strip width of 25mm.
• Custom cut xray curtains are available for any model of xray system.

Please contact us for details on custom curtain sets or large quantity orders by calling  or by email at

Product Details for Ultralight Xray Curtains

• Durable Abrasion Resistant Film on Product Contact Side
• Lightweight Lead Free Rubber Core Composite Shielding
• ROHS & REACH Compliant

Physical Properties of Ultralight Xray Curtains

*Certified according to DIN 61331-1 (50 kV - 110 kV)

Ultralight UHMW Faced Curtain

Ultralight UHMW Faced Curtain

The Ultralight Xray Curtains are NOT recommended for the aggressive applications listed below.  For these applications we suggest our .

• High Speed Jar lines
• Large Metal Foil Packages
• Washdown Applications
